OVERVIEW

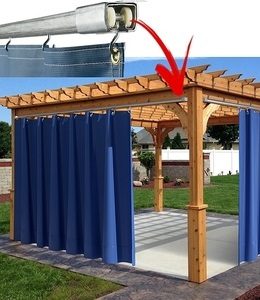

AKON Outdoor Pergola Curtain Track is the ideal solution for your outdoor pergola curtains. Constructed from heavy duty galvanized steel which will not rust or deteriorate. The robust steel track comes complete with all the mounting connections and roller hooks for a quick installation on your pergola . The hardware slips together and is set screw secured making any length or design you require.
Made For Harsh Conditions
Many Different Mounts
Are you looking to hang your outdoor curtains with a track system which is robust and and of industrial grade? Then the Akon pergola track for outdoor curtains is your solution. Simply choose the style of outdoor pergola curtain track that you require and we will provide you with a rapid quote. Once you place your order, the curtain tracking will ship out in only 2 days!
There are several mounting options to choose from based on what structure you want to hang the track from. You can click here to see all the different mounting options.
Rated For Outdoor Use
There are many different sources for curtain tracks, but not many of them are made for outdoor pergola curtain applications. A curtain can be very heavy depending on the height and the mil of the material that it is constructed from.
Ensuring that it’s easy to move forward and backward with ease is very important. Most outdoor curtain rails will rust and deteriorate after a few seasons and render the track unusable. The Akon line of curtain tracking is designed from galvanized steel. This ensures that the track will resist corrosion and allow for many years of worry free use.
The Basic Components
Pergola Curtain Track
We offer several styles of curtain tracks to hang your pergola curtains. The tracks are constructed from high quality 16 gauge galvanized steel and can be connected together for almost any length. 90 Degree bends are also available for applications where the curtain has to enclose an area. Click here to view all curtain track components: All Components.
Pergola Curtain Hangers
All pergola curtain track features curtain hangers. These hangers roll inside of the track and allow the curtain to move effortlessly forward and backwards. The rollers are fabricated from nylon or for heavier curtains or nets, they can feature steel wheels. Generally we suggest these hangers be connected to the curtain every 12”. Nylon Rollers have 40lb capacity, steel rollers have a 75lb capacity.
Pergola Curtain Corners
Almost any configuration is possible with the use of the 90 degree radius corners. These 24” radius corners allow the curtain to roll from one side to the other with ease.
Pergola Curtain Mounts
Depending on your needs, you have the option to choose from several different mounting styles. You can mount directly to the ceiling, joists, chains, cables, adjacent walls, threaded rods, or trusses. You can even choose a free standing curtain track which can be moved around.
Specifications
- Track Thickness: 16 gauge
- Material: Galvanized Steel
- Dimensions: 1.45″w x 1.25″
- Capacity: 125lbs per linear foot (Using Steel Rollers)
- Dimensions: Click here to download PDF
- Warranty: Lifetime
Types of Curtain Track Mounts
Ceiling Mount Curtain Track
Choose this mounting style if you want your industrial curtain track to mount to the ceiling with only a few inches of open gap.
Wall Mount Curtain Track
This curtain track mount is designed for mounting the track next to a vertical wall or stud. This can be parallel to the wall, or perpendicular.
Chain or Cable Curtain Track
Like the threaded rod, a chain supported curtain track is also good for spanning large distances. Both chain or cable can be used to hold up the track.
Threaded Rod Curtain Track
If the distance between the anchor points above is higher than where you want the curtain track, then a threaded rod mount might work well. Steel rods support the track and span the distance between the track and the ceiling.
I-Beam Curtain Track
When connecting to a truss, I-Beam or any other horizontal steel support this style of mount works best. Once connected, you simply tighten down the set screw.
What is the pergola curtain track constructed from?
The curtain tracks are constructed from galvanized steel. The curtain tracks are constructed from either galvanized steel. They resist rusting and are suited for ocean side use, chemical wash down applications..ect.
How thick is the curtain track?
The standard curtain track is 16 gauge thickness. (Note 16 gauge = 0.0635 inches). At this time, we do not offer 12 gauge thickness (0.1084 inches) because it is often times overkill for hanging curtains.
