OVERVIEW
Akon offers freestanding curtain track or portable curtain track for your industrial applications. This hardware is modular in design and can be configured in almost any length and height.
The floor mounted curtain hardware features base plates which can be anchored to the floor for rigid stability.
Quick To Install
Make Any Configuration
The track can be laid out in almost any configuration to meet your application needs. With a friction fit and set screw locking assembly it is easy to install and can be taken apart and reassembled for future applications. Make free standing work cells for dividing out factory work zones or assembly as a single sided free standing curtain wall.
Commercial and Industrial Uses
Rolling Curtain Mount
If you want full access to both sides of the curtain then you can utilize our rolling track hardware. Curtain hooks roll inside of the curtain track to allow easy movement of the curtain back and forth. The industrial free-standing curtains can even roll around the corner with the use of our radius corners.
Ideal Solutions For
- Work Cells
- Dust Control Processes
- Welding Stations
- Grinding Stations
- Production Segmentation
- Wash Bay Booth
- Painting Booth
- Privacy Divider
Made To Your Specifications
Custom Made Per Application
The free-standing curtains are custom made to suit your application. You can have any width you need and up to 15′ in height. There are two components to the setup which includes the industrial curtains and the hardware. The curtains come in many different colors and several different materials based on your needs. Typically they are 18oz Reinforced Vinyl for opaque colors and 20mil Vinyl for all clear curtains. You can combine static curtains with operable side-to-side curtains and strip curtains with solid curtains.
Bolt Together Design
The curtain track hardware is completely self supporting and is an ideal solution when our top down hanging hardware cannot be used. All of the components are made from galvanized steel and can be quickly installed. The frame can then be broken down if need be and moved to a new location.

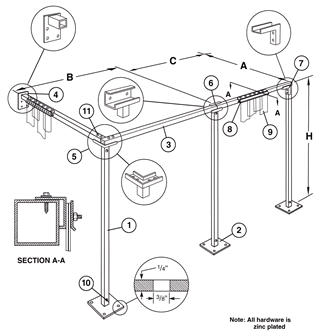

Example Installations
Construction
- Galvanized steel - Hot-dip galvanizing (HDG)
- Lifetime warranty
Uprights
- 2" x 2" OD tubes
- Tube size selected based on curtain heights
- Max height is 12'
- Maximum distance between uprights is 10′ for solid
curtains and 8′ for strip curtains. - Layout drawing provided with each order for your
approval
Base Plates
- 12" x 12"
- 3/8" lag holes located in each corner
Assembly
- Your order will arrive as a bolt together kit
- Simply assemble hardware and then hang the curtains
Strip Mount Style
- Strips attach to horizontal cross members
- Strips bolt on for secure locking
- Strips can unbolt to be replaced quickly
Rolling Curtain Mount Style
- Curtains attach to nylon roller hooks
- Curtains roll side-to-side for complete access
