Golf Simulator Curtain Track

Name: Golf Simulator Curtain Track
SKU: GolfSimulatorCurtainTrack
Availability: InStock

Discover the ultimate Golf Simulator Curtain Track, designed for golf enthusiasts who demand both durability and functionality. This top-of-the-line track is tough enough to endure hits from golf balls, ensuring your intense practice sessions go uninterrupted. Crafted with rust-resistant materials, it stands up to any environment, making it perfect for both indoor and outdoor setups. Its modular design offers flexibility, allowing you to customize your space to your liking. The smooth rolling mechanism lets you open the golf curtains with ease, providing quick access to your simulator. Upgrade your golfing experience with this resilient, versatile curtain track – a must-have for any serious golfer. The modular clamp together design makes it a quick install and allows it to be re-purposed in other locations if needed. Build it below!

SKU: GolfSimulatorCurtainTrack Category: Curtain Track Kits

Subtotal
Options
Total

Description

Description

Description FAQ Warranty

Description

Your golf simulator curtain track hardware kit includes all the components that you need to hang your golf sim curtains. Once you place your order, we will email you an order confirmation with all of the components itemized for you to review. Please note that the track is not cut to the exact sizes you input on the form. Track pieces will ship out in stock sizes and are made to be field cut with a hacksaw or power saw for a perfect fit.

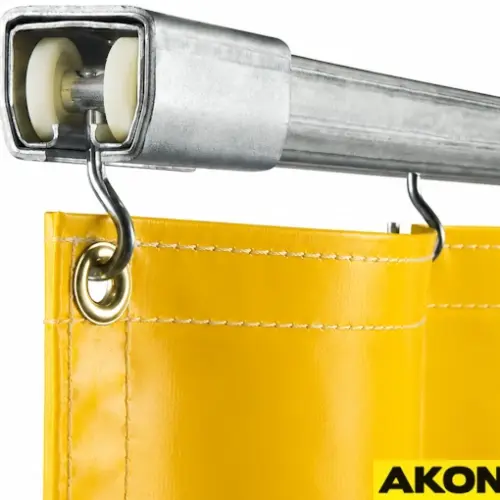

Your Kit Includes

Nylon roller wheels spaced every 6″
Track supports for spacing every 5′
Straight track sections that splice together
End stops to keep rollers inside of the track
90 Degree radius corner (optional)
90 Degree hard corner (optional)

How the Track Assembles

The golf curtain track slips together and is bolted with set screws for a rigid construction.
Track supports are provided for every 5′, but you can space them out wider if needed.

Material

16 gauge hot dipped galvanized steel
Golf ball impact resistant and won't deform like other brands
Nylon roller hooks have a 40 lb. load rating
Steel track is rated for 100 lbs. per linear foot

6 Support Styles

industrial-curtain-hadware

Lead Time | Warranty

Ships in 3-5 workdays
Once you place your order, we will email you an order confirmation with all of the components itemized for you to review.
Lifetime warranty on manufacturing defects

FAQ

Video Tutorial

Common Questions

What is the spacing from the bottom of the track to the top of the curtain?
1. Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

Can the track be cut to size as required on site?

Yes, the track is made to be field cut on-site using a hacksaw or sawzall.

How much width does the radius corner add to the length?

A radius corner has a 2' radius. So if you input 10' for curtain length, you will end up with 12' when you attach the radius corner. If that is too long, then simply cut the track onsite, and the radius will still work.

I have a drop ceiling; what track support should I use?

The chain or cable-style track support is ideal for drop ceilings. Your steel cables (not provided by Akon) are simply dropped down from the structure above the tile ceiling. The track support tabs then stick up and through the tile allowing you to attach the cables.

How does the track go together?

The track is modular in design and will arrive in pieces that slip together and bolt together with set screws.

How close together do I need the track supports?

The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively lightweight curtain, then you could space the supports out to about 8' apart. You will receive enough track supports with your order to achieve this 5' spacing.

Can I simply drill straight through the track and into the ceiling / structure?

Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw... etc., into your structure. Space the holes about every 3-5'.

How hard is it to install the industrial curtain track?

It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty, simply call or email us and we will walk you through the process.

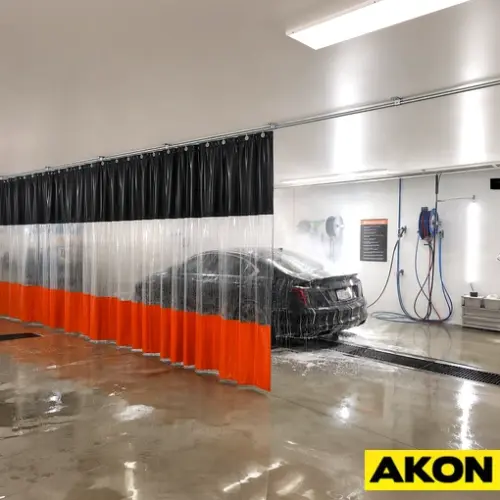

Will the track rust? Can it be used in wet environments?

The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

How much weight can the roller hooks support?

The curtain track roller hooks are rated for 40 lbs each. If you have a unique application that requires a roller with a greater load rating, please use dual steel rollers, that have a 75 lb. rating.

Can I paint the curtain track?

The hardware comes as plain galvanized steel. Some customers choose to spray paint the track, which is OK and does not affect its performance. You can use a steel spray paint to paint the track to your desired color once it arrives. Example below.

What size threaded rod does the threaded rod style track use?

The threaded rod track uses a 3/8" threaded rod with a nut and washer as shown below. Threaded rods are not provided by AKON and can be sourced locally from a hardware store.

Warranty

Warranty

We provide materials for industrial companies so we know how to supply a tough product! Its very unlikely that you will have any issues, but if you do, rest assured the hardware comes with a lifetime manufacturer's warranty. We do have the right to repair or replace any potentially defective products but we will make sure you get what you need. The warranty will not cover any damages caused by improper use, improper installation or abuse.

Returns

AKON has a 30-day return policy from date of shipping. The hardware must be in the same new condition as when you received it and the shipping fees will be deducted from the refunded amount.
