OVERVIEW
Akon is a premier supplier of long lasting heavy duty suspended curtain tracks. From 10’ to 500’ we can provide you with a suspended curtain track system that will endure the rigors of heavy use and harsh environments. Used for commercial fabric curtains and industrial curtains.

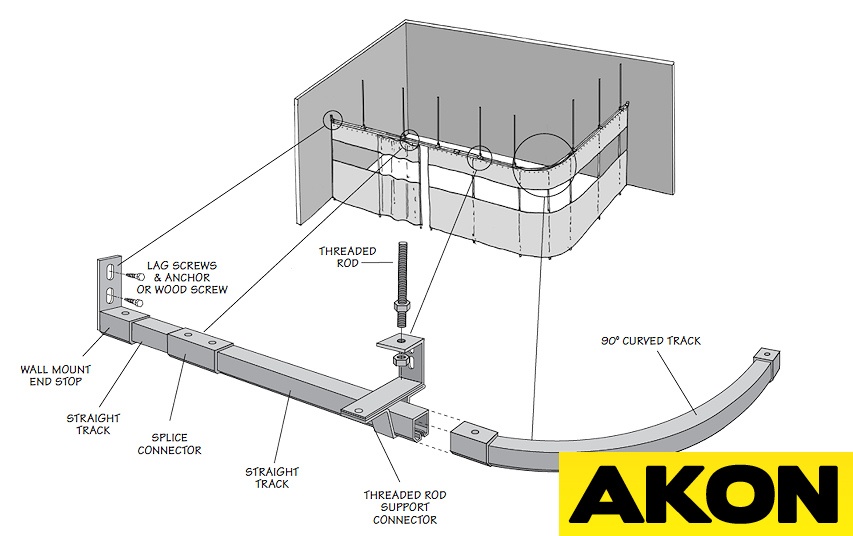

The Basic Components
Suspended Curtain Track
We two different styles of suspended curtain tracks to hang your curtains. The tracks are constructed from high quality 16 gauge galvanized steel and can be connected together for almost any length. 90 Degree bends are also available for applications where the curtain has to enclose an area. Click here to view all curtain track components: All Components.
Suspended Curtain Hangers
All curtain tracks features industrial curtain hangers. These hangers roll inside of the track and allow the curtain or sport netting to move effortlessly forward and backwards. The rollers are fabricated from nylon or for heavier curtains or nets, they can feature steel wheels. Generally we suggest these hangers be connected to the curtain every 12”. Nylon Rollers have 40lb capacity, steel rollers have a 75lb capacity.
Suspended Curtain Corners
Almost any configuration is possible with the use of the 90 degree radius corners. These 24” radius corners allow the curtain to roll from one side to the other with ease.
Suspended Curtain Mounts
Depending on your needs, you have the option to choose from two different mounting styles. You can use chain or cables to drop down from above or you can use threaded rods. Threaded rods have to come straight down from above while chain or cables give you a little more flexibility.
Example Installations
Specifications
- Track Thickness: 16 and 12 gauge
- Material: Galvanized Steel or Stainless Steel
- Dimensions: 1.45″w x 1.25″
- Capacity: 125lbs per linear foot (Using Steel Rollers)
- Dimensions: Click here to download PDF
- Warranty: Lifetime
Types of Curtain Track Mounts
Chain or Cable Curtain Track
Like the threaded rod, a chain supported curtain track is also good for spanning large distances. Both chain or cable can be used to hold up the track.
Threaded Rod Curtain Track
If the distance between the anchor points above is higher than where you want the curtain track, then a threaded rod mount might work well. Steel rods support the track and span the distance between the track and the ceiling.
What is the curtain track constructed from?
The curtain tracks are constructed from either galvanized steel or stainless steel. They both resist rusting however the stainless steel is better suited for ocean side use, chemical wash down applications..ect. Keep in mind the stainless steel hardware is about 3 to 4 times the cost of the galvanized hardware. Also note that all the hardware on the site that you see is the same as the stainless steel version.
How thick is the curtain track?
The standard curtain track is 16 gauge thickness. (Note 16 gauge = 0.0635 inches). We also offer the same track in 12 gauge thickness (0.1084 inches). However this is often times overkill for hanging curtains. The 12 gauge would be ideal for heavier loads where the track is being used to hold products, plates, tools...ect. If you want a quote on the heavier 12 gauge simply ask your sales person to update your quote.
